  Home > Diamond Products Ltd ™ > MASONRY SAWS >

CC515MXL2E1 14" Masonry Saw 1.5Hp 1Ph 115V/230V
03725 CC515MXL2E1 14" Saw 1.5Hp 1Ph 115V/230V 5800799
Part# 580079 Cat # 03725

Alternative Views:

MSRP: $3,087.00
Ruff N Tuff Tools Price: $2,932.65
Contractor Pricing $2,416.56

Product Code: 03725

Bulk item transport options

Freight Delivery Options*:
Commercial Delivery Address
Residential Delivery Address SP [Add $110.00]

CC515MXL2E1 Masonry Saw 1.5Hp with 115V/230V Baldor motor.
Cat # 03725
Part# 5800799

  • Stay level blade guard
  • Removable cutting head
  • Leg kit standard-folding stand optional
  • Side carrying handles
  • Replaceable conveyor cart rails
  • Includes water pump
  • Vulcanized rubber coated material slide cart
  • Open throat cutting
  • Easy and safe access to depth control lock
  • Open back cutting allows longer material to be cut
  • Heavy duty frame design help resist damage to saw body
  • Reinforced slide rails keep the cart running smoothly
  • Simple yet strong design allows easy maintenance
  • Sealed drain hole on the bottom of the tray allows quick clean up
Max Depth of Cut: 5"
Blade Shaft Diameter: 7/8"
Arbor Diameter: 1"
Blade Shaft bearings: Flange block ball bearings
Blade shaft Drive: 2 Belts
Blade Mounting: Right (electric) and Left for (Gas)
Blade Raise/Lower: Counter Balanced, Spring tensioned head pivots on two 7/8" flange block bearings
Blade coolant: Dual Spray tubes, pump fed (electric models), Pump from tray (gas models)
Air Filter: 3 Stage cyclone (gas models)
Fuel Capacity: 1 Gallon (gas models)
High Temp Shut off: included (electric models)

Electric Model shown for reference with optional folding stand Part# 6030042 Cat# 46893
*Blade not include

CC5000MXL2 Shown with Optional Folding Stand

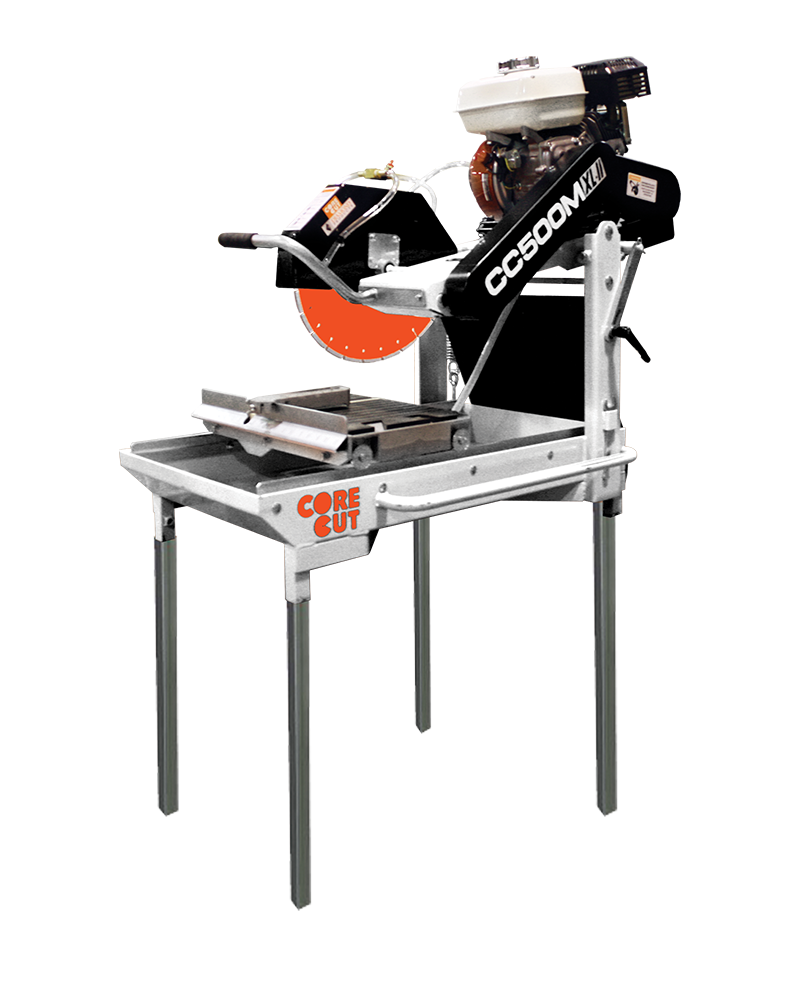

Gas Model shown for reference
*Blade not included

Side carrying handles are standard.

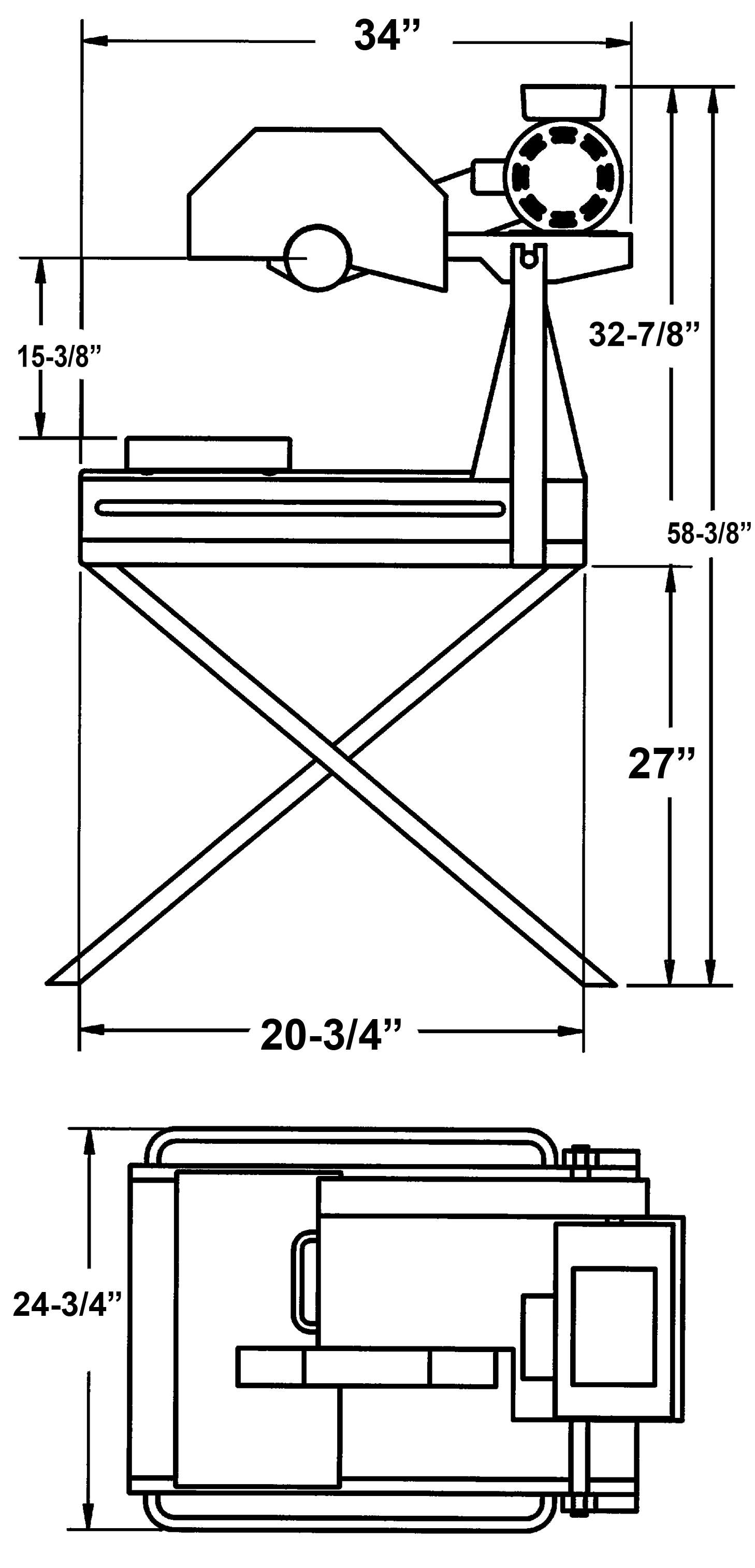

CC500MXL2 Dimensions

Warning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
