MK-5005S BLK SAW 50HZ/208-230V, Single Phase, 14" Blade Capacity
160635-14, MK-5005S 14" BLK SAW 50HZ/208-230V 1 Phase

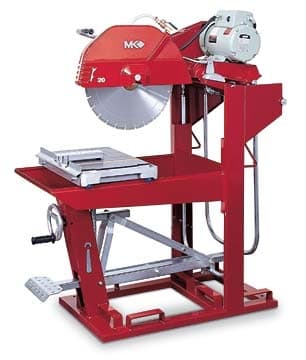

Shown with 20" blade guard for reference only.



MSRP: $10,670.74
Ruff N Tuff Tools Price: $10,137.20
SALE : $9,603.67



Product Code: 160635-14

Bulk item transport options

Freight Delivery Options*:
Commercial Delivery Address
Residential Delivery Address SP [Add $110.00]

Qty:
Description


MK-5000 Electric Series Features:

  • Precision screw feed mechanism allows the cutting head to be easily raised or lowered to the precise cutting depth required
  • Self-leveling blade guard provides optimum blade coverage for operator safety
  • Open-back design allows for material up to 20" long to be cut
  • Conveyor cart built from heavy-duty cast aluminum
  • 3 phase saws are equipped with GE NEMA 1 starters in NEMA 12 enclosure
  • Adjustable water supply for maximum blade protection
  • Built-in tie-downs for safer saw transport
  • Ergonomically designed handle for reduced operator fatigue
  • Heavy-duty built-in forklift brackets allow lift to approach from the front or either side of the saw
  • One-year limited warranty
  • This item qualifies for Free Freight, but lift gate and residential delivery charges may apply. We can also deliver to your local freight terminal instead.

General Specifications
Motor Baldor (208-230V/50Hz, Single Phase)
Arbor Size 1"
Motor RPM 1,725
Shaft RPM - 14" Blade 2,700
Shaft RPM - 20" Blade 1,925
Shaft RPM - 24" Blade 1,540
Depth of Cut - 14" Blade 5"
Depth of Cut - 20" Blade 8"
Depth of Cut - 24" Blade 10"
Length of Cut 20"
L x W x H 53" x 26" x 63"
L x W x H (mm) 1,346 x 660 x 1,600
Shipping Method Truck/Terminal Del. available
Motors available in other electrical configurations.
Email us at [email protected] or phone us
at 888-747-8593 for export configurations.

Accessories Included with MK-5000 Saws
Electric Water Pump
Rip Guide


MK-5000 Series Blade Guard
Stay level blade guard gives 180º coverage at all times.

MK-5000 Series Open Back
Open-back design allows 8" high block to be cut in a single pass.

MK-5000 Electric Series Three Phase Control Box
All 3 phase saws are equipped with GE NEMA size 1 starters with NEMA 12 enclosure. The power cord is a minimum length of 6 feet and comes ready for panel wiring. Additional power cord length is available upon request.

MK-5000 Series Conveyor Cart
The MK-5000 conveyor cart is built from heavy-duty cast aluminum. A skid-resistant rubber top is permanently bonded to the table top for wear resistance. Water-flow control vents channel water during cutting operations to the water pan. Nylon conveyor cart wheels have permanently sealed bearings.

MK-5000 Gas Series Belts & Shock Mounts
Heavy-duty built-in forklift brackets allow lift to approach from front, back, or either side.
