  Home > MK Diamond ™ > Masonry > Masonry Saws >

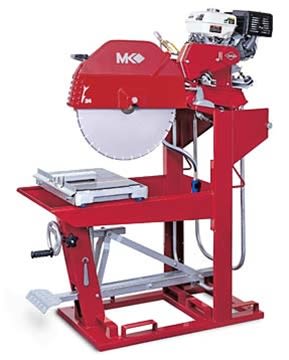

MK-5013G-24 BRICK AND BLOCK SAW
158936-24, MK-5013G-24 BRICK & BLOCK SAW
Diamond Blade not included with saw



MSRP: $8,504.00
Ruff N Tuff Tools Price: $8,078.80
Internet Special $7,653.60



Product Code: 158936-24

Bulk item transport options

Freight Delivery Options*:
Commercial Delivery Address
Residential Delivery Address [Add $115.00]

Qty:
Description


MK-5000 Series Features:

  • Precision screw feed mechanism allows the cutting head to be easily raised or lowered to the precise cutting depth required
  • Self-leveling blade guard provides optimum blade coverage for operator safety
  • Open-back design allows for material up to 20" long to be cut
  • Conveyor cart built from heavy-duty cast aluminum
  • Adjustable water supply for maximum blade protection
  • Built-in tie-downs for safer saw transport
  • Ergonomically designed handle for reduced operator fatigue
  • Engine attachment is via four vibration isolation mounts
  • Belt driven, self-priming centrifugal water pumps can be disengaged for dry cutting
  • Heavy-duty built-in forklift brackets allow lift to approach from the front or either side of the saw
  • One-year limited warranty
  • FREE SHIPPING to a Business address. Shipments to a residence may be charged a residential delivery fee ($65.00) and lift gate fee ($50.00).
ModelMK-5009GMK-5009G
EngineHonda GX270 Cyclone Kohler CH395
Weight498 lbs. (225kg)498 lbs. (225kg)
Part # (14" Blade Guard)158935-14
Part # (20" Blade Guard)158935168805
Part # (24" Blade Guard)158935-24168805-24
Model MK-5010G MK-5013G
EngineVanguard 19H200Honda GX390 Cyclone
Weight513 lbs. (233kg)513 lbs. (233kg)
Part # (20" Blade Guard)169338158936
Part # (24" Blade Guard)169338-24158936-24
General Specifications
Arbor Size1"
Motor RPM3,600
Shaft RPM - 14" Blade2,700
Shaft RPM - 20" Blade1,851
Shaft RPM - 24" Blade1,653
Depth of Cut with 14" Blade5"
Depth of Cut with 20" Blade8"
Depth of Cut with 24" Blade10"
Length of Cut20"
L x W x H57" x 26" x 72"
L x W x H (mm)1,524 x 660 x 1,826
Shipping MethodTruck

Accessories Included with MK-5000 Gas Saws
Centrifugal Water Pump
Rip Guide

Recomended Blades
BrickMK-10
Hard BrickMK-10PSL
Brick & BlockMK-30
Concrete BlockMK-50
Hard Material (Silent Core)MK-925DSLX

Replacement Accessories for MK-5000 Saws
Table: 152124
Pump:


Stay level blade guard gives 180º coverage
at all times. (20" guard shown for reference only. Actual guard size is determined when ordering)



Open-back design allows 8" high block to
be cut in a single pass.



The MK-5000 conveyor cart is built from
heavy-duty cast aluminum. A skid-resistant
rubber top is permanently bonded to the table
top for wear resistance. Water-flow control
vents channel water during cutting operations
to the water pan. Nylon conveyor cart wheels
have permanently sealed bearings.



Gas saw cutting heads are designed to
keep the rotation of the motor within the
manufacturer's requirement of degrees
of motion.



Heavy-duty built-in forklift brackets allow
lift to approach from front, back, or either side.



The foot pedal may be used to step cut/chop cut. Using the foot pedal frees both of the operator's hands from holding the masonry piece.


Warning: Use of this equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
Ruff N Tuff Tools presents the MK-5000 series masonry saws
