THIS ITEM HAS BEEN DISCONTINUED.
CALL 1-888-747-8593 FOR NEXT SUITABLE ALTERNATE SAW

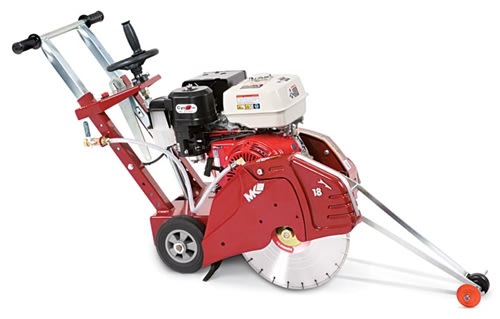

MK-1600 Series Features: Part# 160832
- NEW 18" BLADE CAPACITY gives 6-5/8 depth of cut!
- One-piece box construction chassis made from 3/16" hot-rolled steel will not flex during operation
- Powder-coated chassis resists peeling & corrosion
- Cast-aluminum hinged blade guard
- Stainless steel water distribution system supplies water to both sides of blade
- Blade guard mounts on both left- or right-hand side of saw and cuts within 2" of wall or curb
- 1" blade shaft supported by two heavy-duty, self-aligning pillow block bearings
- Depth control assembly engineered for smooth, controlled blade insertion
- Durable 8" x 2-1/4" non-slip rubber wheels with maintenance-free hubs & roller bearings
- Positive-locking depth control mechanism
- Standard series saws do not include built-in depth gauge, tach/hour meter, and lifting bail
- One-year limited warranty
| Model | MK-1614K Standard | MK-1614K Premium | MK-1613S Standard |
| Engine | Kohler CH440 | Kohler CH440 | Subaru EH41 |
| Blade RPM | 2,700 | 2,700 | 2,700 |
| Weight | 223 lbs. (101 kgs.) | 233 lbs. (106 kg.) | 223 lbs. (101 kgs.) |
| Part # | 157864-K | 168930 | Discontinued |
| Model | MK-1613S Premium | MK-1613V Standard | MK-1613H Standard |
| Engine | Subaru EH41 | Vanguard V-Twin | Honda GX390 |
| Blade RPM | 2,700 | 2,700 | 2,700 |
| Weight | 233 lbs. (106 kg.) | 233 lbs. (106 kg.) | 223 lbs. (101 kg.) |
| Part # | Discontinued
| 169948 | 160832 |
| Model | MK-1613H Premium | MK-1609H Standard |
|
| Engine | Honda GX390 | Honda GX240 |
|
| Blade RPM | 2,700 | 2,700 |
|
| Weight | 233 lbs. (106 kg.) | 210 lbs. (95 kgs.) |
|
| Part # | 160772 | 157867 |
|
| General Specifications | | Arbor Size | 1" (25mm) | | Blade Capacity | 18" (457mm) | | Depth of Cut | 6-5/8" (168mm) | | LxWxH (inches) | 42" x 25" x 39" | | LxWxH (mm) | 1,067 x 635 x 991 |
|
|
Accessories Included with MK-1600 Premium Saws only
| | Lifting bail | | Built-in Depth Gauge | | Built-in Tach/Hour Meter |
|
|
|
|
| Optional Accessories | | Water Tank (lifting bail required to mount water tank) | | Lifting Bail (not included with MK-1600 standard saws) |
|
![]()
New 18" blade capacity.Cast-aluminum blade guard
with stainless steel water distribution
system supplies water to both sides of blade.
![]()
Blade guard mounts on either left- or right-hand side of
saw and allows cutting within 2" of wall or curb.
![]()
MK-1600 Premium Control Console
Engine power ratings are calculated by the individual engine manufacturer and the rating method may vary among engine manufacturers. MK Diamond Products makes no claim, representation or warranty as to the power rating of the engine on this equipment and disclaims any responsibility or liability of any kind whatsoever with respect to the accuracy or the engine power rating. Users are advised to consult the engine manufacturer’s owners manual and website for specific information regarding the engine power rating.
![]()
Warning: Use of this equipment can expose you tochemicals including nickel and crystalline silica which are known to the Stateof California to cause cancer. For more information go to www.P65Warnings.ca.gov.Repeated and/or substantial inhalation can cause serious or fatal respiratorydiseases including silicosis. Employ dust controls and protection perOSHA/NIOSH/MSHA
