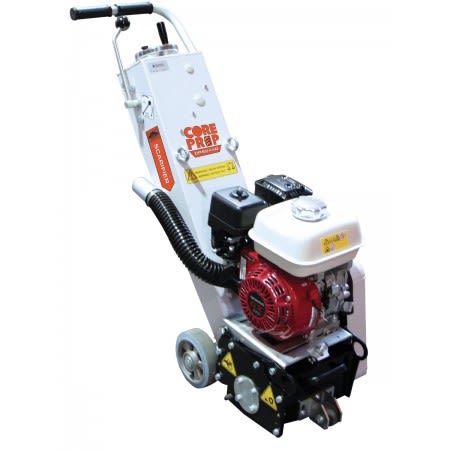

CPS1320E3 CORE PREP Scarifiers

CPS1320E3 CORE PREP Scarifiers
Cat# 112188
Part# 5802003

Product Description
The Core PrepScarifiers give you the option of a gas engine or electric motor which givesyou the flexibility for construction sites with or without power supply. Themain applications include surface texturing, scarifying, planing, grooving,cleaning, descaling and removal of road markings.

Features:

• Gas or electric options
• Height adjustment by hand wheel
• Quick lift lever
• Easy to maneuver
• Belt tensioner with durable toothed belt
• Vacuum connection
• 13-1/4" Milling Width with Diamond (20HP Electric)

• 12-1/2" Milling Width with cutter drum (20HPElectric)

CPS1320E3 SPECIFICATIONS
Model	CPS1320E3 Electric (Self-Propelled)
Power	460V / 60Hz / 3PH / 20 HP
Milling Width	12-1/2" w/diamond, 13-1/2" w/drum
Tool Speed	1917 RPM
Vacuum Connection	2-3/4"
Application	Dry
Length	46-1/2"
Width	25"
Height	38-1/2"
Weight	652 lbs.

Warning: Use of this product & equipment can expose you to chemicals including nickel and crystalline silica which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Repeated and/or substantial inhalation can cause serious or fatal respiratory diseases including silicosis. Employ dust controls and protection per OSHA/NIOSH/MSHA
