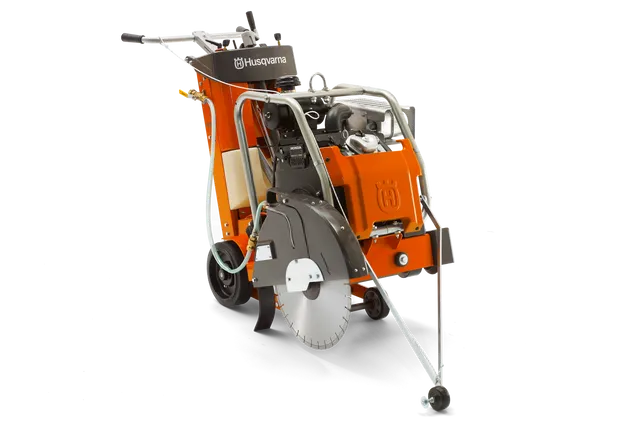

Our convenient and compact FS 513 is a self-propelledfloor saw ideal for asphalt and concrete cutting. Suitable for small tomedium-sized service and repair jobs, up to 6.1" cutting depth. Theoptimal power transmission makes it ideal for more demanding jobs, despite itscompact size. User-friendly and developed with a clear focus on your comfort.
Top specifications
Power source Petrol
Engine Power (As rated by the engine manufacturer) 11.7 hp
Blade diameter, max 20 in
Cutting depth, max 7 in
Engine | |
Motor/engine manufacturer | Honda |
Engine Power (As rated by the engine manufacturer) | 11.7 hp |
Engine cooling | Air |
Fuel tank volume | 206.3 fl oz |
Number of strokes | 4-stroke engine |
Exhaust emissions (CO₂ EU V) | 743 g/kWh |
Cylinders | 1 |
Power source | Petrol |
Cutting equipment | |
Cutting depth, max | 7 in |
Blade diameter, max | 20 in |
Arbor diameter | 1" |
Blade depth control | Hand wheel |
Transmission | |
Transmission speed forward | 85 fpm |
Dimensions | |
Product size length | 66.93 in |
Product size height | 47.24 in |
Weight | 470 lbs |
