  Home > MK Diamond ™ > Masonry >

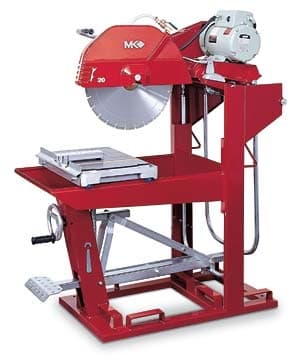

MK-5005S BLK SAW 60HZ/208-230V, Single Phase, 14" Blade Capacity
160634-14, MK-5005S 14" BLK SAW 60HZ/208-230V 1 Phase
Shown with 20" blade guard for reference only.



MSRP: $10,432.65
Ruff N Tuff Tools Price: $9,911.02
SALE : $9,389.39



Product Code: 160634-14

Bulk item transport options

Freight Delivery Options*:
Commercial Delivery Address
Residential Delivery Address SP [Add $110.00]

Qty:
Description


MK-5000 Electric Series Features:

  • Precision screw feed mechanism allows the cutting head to be easily raised or lowered to the precise cutting depth required
  • Self-leveling blade guard provides optimum blade coverage for operator safety
  • Open-back design allows for material up to 20" long to be cut
  • Conveyor cart built from heavy-duty cast aluminum
  • 3 phase saws are equipped with GE NEMA 1 starters in NEMA 12 enclosure
  • Adjustable water supply for maximum blade protection
  • Built-in tie-downs for safer saw transport
  • Ergonomically designed handle for reduced operator fatigue
  • Heavy-duty built-in forklift brackets allow lift to approach from the front or either side of the saw
  • One-year limited warranty
  • Lift gate and residential delivery charges may apply. We can also deliver to your local freight terminal instead.

General Specifications
Motor Baldor (208-230V/60Hz, Single Phase)
Arbor Size 1"
Motor RPM 1,725
Shaft RPM - 14" Blade 2,700
Shaft RPM - 20" Blade 1,925
Shaft RPM - 24" Blade 1,540
Depth of Cut - 14" Blade 5"
Depth of Cut - 20" Blade 8"
Depth of Cut - 24" Blade 10"
Length of Cut 20"
L x W x H 53" x 26" x 63"
L x W x H (mm) 1,346 x 660 x 1,600
Shipping Method Truck/Terminal Del. available
Motors available in other electrical configurations.
Email us at [email protected] or phone us
at 888-747-8593 for export configurations.

Accessories Included with MK-5000 Saws
Electric Water Pump
Rip Guide


Stay level blade guard gives 180º coverage at all times.


Open-back design allows 8" high block to be cut in a single pass.

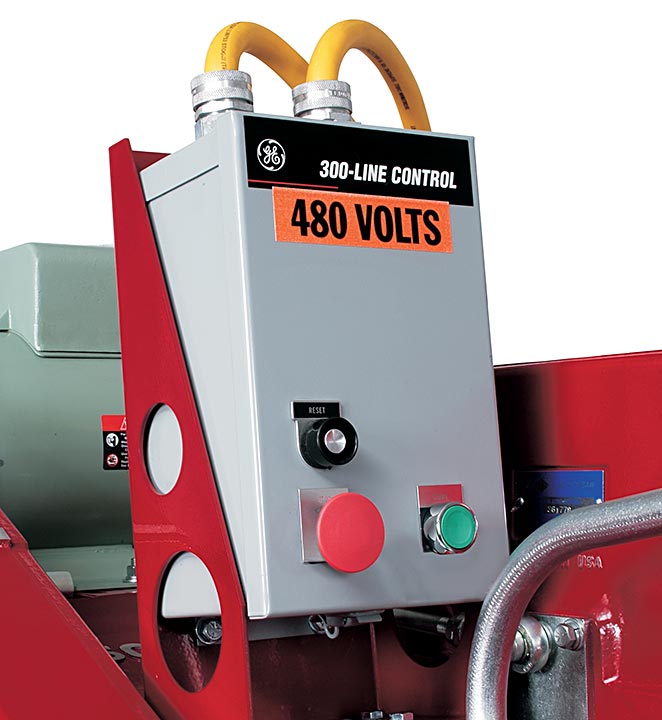

All 3 phase saws are equipped with GE NEMA size 1 starters with NEMA 12 enclosure. The power cord is a minimum length of 6 feet and comes ready for panel wiring. Additional power cord length is available upon request.

MK-5000 Series Conveyor Cart
The MK-5000 conveyor cart is built from heavy-duty cast aluminum. A skid-resistant rubber top is permanently bonded to the table top for wear resistance. Water-flow control vents channel water during cutting operations to the water pan. Nylon conveyor cart wheels have permanently sealed bearings.

Heavy-duty built-in forklift brackets allow lift to approach from front, back, or either side.



Warning: This equipment contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. These chemicals are contained in various components. fluids and paints including, but not limited to fuel, oil, electric motors and batteries. In addition, gasoline/diesel powered equipment emits engine exhaust and fumes, and when serviced, cleaned or maintained generate used oil, waste fluids, fumes, grease, grime and particulates from the component wear and silica dust which contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to

www.P65Warnings.ca.gov
